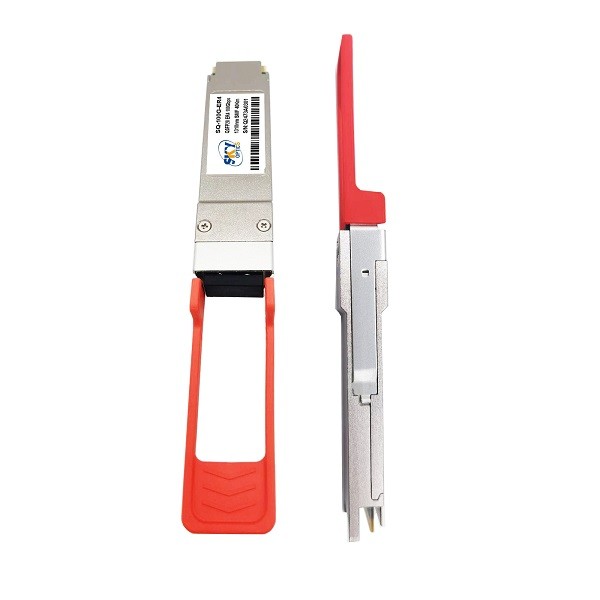

QSFP28 Transceiver 100G Optical Module with 100Gbps Data Rate for 40km Distance and 0°C to 70°C Operating Temperature

Brand Name : SkyOptics / OEM / ODM

Model Number : SQ-100G-OD40-XXX5S

Certification : CE / FCC / RoHs

Place of Origin : China

MOQ : 1 unit

Price : US$1~US$4999

Payment Terms : ,L/C,T/T,Western Union

Supply Ability : 100kpcs/month

Delivery Time : Same Day Delivery~one Week

Packaging Details : Plastic Tray/Plastic Bag/Customized

Form Factor : QSFP28

Power Supply : 3.3V ±5%

Data Rate : 100Gbps (4x25Gbps NRZ to PAM4)

Operating Temp : 0°C to 70°C

Storage Temp : -40°C to 85°C

Interface : 4x25G electrical, 1x100G optical

Connector : LC Duplex

Wavelength : ITU-T CW-WDM MSA compliant

Tx Power : 2 – 7.1 dBm

Rx Sensitivity : -16.5 dBm

LOS Hysteresis : 0.5 dB

Modulation : PAM4

Humidity : 5% to 85% non-condensing

Contact Now

Product Description


This MSA-compliant QSFP28 transceiver offers seamless integration into existing 100G infrastructure. It supports DWDM channels in the O-Band and provides a reliable 40km link over single-mode fiber. The module features a standard LC interface and hot-pluggable design for easy deployment and maintenance.


Features

QSFP28 MSA compliant

Hot-pluggable LC duplex interface

Supports SFF-8636 management interface

Low power mode and Tx disable function

I²C DDM for real-time monitoring

Compatible with standard host systems

RoHS compliant and UL certified

ESD protection on electrical and optical ports


Technical Parameters

Form Factor QSFP28
Interface 4x25G electrical, 1x100G optical
Connector LC Duplex
Wavelength

ITU-T CW-WDM MSA compliant
Tx Power

2 – 7.1 dBm

Rx Sensitivity

 -16.5 dBm

Power Supply

 3.3V ±5%
Operating Temp 0°C to 70°C
Storage Temp -40°C to 85°C
Humidity 5% to 85% non-condensing


Applications

Data center spine-leaf architecture

Service provider edge networks

Cable TV and broadband aggregation

High-density switch and router platforms
